Process Configuration Part-I

Step: 1 - Maintain Purchase Organization

SPRO - Enterprise Structure - Definition - Materials Management - Maintain Purchasing Organization.

Step: 2 - Create Purchasing Group

TCode: OME4
SPRO - Materials Management - Purchasing - Create Purchasing Group.

Step: 3 - Maintain Transportation Planning Point to Company Code.

TCode: OVXT
SPRO - Enterprise Structure - Definition - Logistics Execution - Maintain Transportation Planning Point

Step: 3A - Assign Transportation planning point to company code.

Sap Transport Management System Configuration

Step: 4 - Assign Purchasing Organizations to Company Code.

TCode: OX01
SPRO - Enterprise Structure - Assignment - Materials management - Assign Purchasing Organization to Company Code.

Step: 5 - Assign Purchasing Organizations to Plant.

TCode: OX17
SPRO - Enterprise Structure - Assignment - Materials management - Assign Purchasing Organization to Plant.

Step: 6 Create Vendor Account Group

TCode: OMSG & Number Range OMSJ
SPRO - Financial Accounting - Accounts Receivables and Accounts Payables - Customer Accounts - Vendor Accounts - Master Data - Preparations for Creating Vendor Master Data - Define Account Group

Cricket 07 ea sports download. With all the latest faces, realistic 2019-2020 stadiums, accurate squads of all teams, it also features new & variety of broadcasting overlays. It surely deserves it’s place in the Top 7 Cricket 07 patches for Ea sports cricket 07.

Step: 8 Create Vendor

Sap Transport Management System Configuration Example

TCode: XK01

Step: 9 Define Modes of Transport

TCode: 0VTB
SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Define Modes of Transport

Step: 9A Define Shipping Types

TCode: 0VTA
SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Define Shipping Types
Select New Entries and Assign the Shipping Type (e.g. Road or Train) and Assign Mode of Transport (Mdtr) and Assign Shipping type Procedure group.

Sap Transport Management System Configuration Management

Step: 9B Define Transportation Connection Point

TCode: 0VTD
SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Define Transportation Connection Point.

Step: 9C Define Routes and Stages.

Sap Transport Management System Configuration

TCode: 0VTCS
SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Define Routes and Stages.
Select the New Entries and Enter the Details - Then Select the Routes stages and define

Step: 9D Maintain Stages for all Routes.

Sap

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Maintain Stages for all Routes.

Step: 10 ROUTE DETERMINATION - Define Transportation Zone

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Define Transportation Zone.

Step: 10A Maintain County and Transportation Zone for Shipping Point.

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Maintain County and Transportation Zone for Shipping Point.

Step: 10B Define Transportation Groups

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Define Transportation Groups

Step: 10D Maintain Route Determination

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define Routes - Maintain Route Determination.

SHIPMENTS

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Shipments

Step: 11 Define Shipment Types

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Shipments - Define Shipment Types.

Step: 12 In Customer master data.

In Address of General data. Enter the Transportation Zone id. And save you will get the route.

Process Configuration Part-II

1) Maintain transportation planning point through Menu as follows:

SPRO - Enterprise Structure - Definition - Logistic Execution - Maintain transportation planning point

2) Defining modes of transport:

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Define routes - Execution Define modes of transport
Use the standard configuration like:

3) Define shipping types :

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Shipping types

PT

Description

Mdtr

STPG

01

Truck

01

0001

4) Define transportation connecting point :

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Connection points
You can copy the standard point and make it FB01 as departure zone and FB02 as destination zone

5) Define routes and stages.

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Transportation routes and stages
Use the standard route and copy it as FB0001 and enter the departure zone and destination as what we created.

6) Defining Transportation Zone:

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes - Router determination
Use the standard transportation zone depending on the route so as for the example use 0000000003 - Southern Region

7) Maintain country or transportation zone for shipping points

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Transportation zone for shipping point
Assign Shipping point & route to the desired country

8) Maintain route determination:

SPRO - Logistics Execution - Transportation - Basic Transportation Function - Routes Determination

Country of departure

Departure Zone

Country of destination

Destination Zone

And enter the data's needed like shipping condition 01, etc.

Maintain Transportation relevance for

  • shipping point
  • sales document type
  • delivery types.

9) Now create shipping types

SPRO - Logistics Execution - Transportation - Shipments - Shipment

10) Define and assign traffic zones through menu as follows:

TCode: T_76
SPRO - Logistics Execution - Transportation - Shipment - Shipments cost - Functions Tariff Zones
Copy the standard to create TARIFF ZONE of own.
Then assign already created transportation planning point to the tariff zone

11) Define and assign pricing procedures

SPRO - Logistics Execution - Transportation - Shipment - Shipments cost procedures

  • Pricing
  • Price control
  • assign pricing

12) Assign purchasing data:

SPRO - Logistics Execution - Transportation - Shipment - Shipments cost - Settlement

13) Assignment

Assign Transportation planning point to combination of

  • shipping condition
  • purchase organization
  • purchasing group
  • plants

14) Define Automatic G/L account determination:

TCode: OMWB
SPRO - Logistics Execution - Transportation - Shipment - Shipment Costs - Settlement ()
Assign a GL account

15) Automatic determination of CO assignments:

TCode: OKB9
SPRO - Logistics Execution - Transportation - Shipment - Shipment Costs - Settlement - Determination of CO Assignments

16) Maintain shipping point address.

SPRO - Enterprise Structure - Logistics Execution - Definition - Define, copy, Delete, check shipping - Definition point
Maintain the address

Sap Transport Management

17) Creating G/L account centrally.

TCode: FS00
SAP Easy Access - Financial - General Ledger - Master Records - Accounting - Accounting Individual - Processing Centrally

18) Enter the G/L account for your company code

19) Create transportation condition records:

TCode: TK11
Logistics - Master data - Transportation - Shipment cost - Price

1. The system determines the pricing procedure for the shipment cost item-using

  • transportation planning point
  • service agent
  • shipment cost item category
    2. Calculation Basis
    3. Condition Record
    4. Access sequence.

Step 1. Create Delivery Document

TCode: VL01N
With reference the sales order create a delivery using TCode - VL01N and pick the goods.

Step 2. Create Shipment Document

TCode: VT01N
After the status of the delivery is open for transportation planning, it is possible to create a shipment document to schedule the transportation.
Now create a shipment using TCode - VT01N (SAP Easy Access - Logistics - Logistic Execution - Transportation - Transportation Planning - Create - Single document)
and assign the delivery to the shipment document. Make sure to enter the carrier and other details before performing the transportation planning and execution.
After the deliveries are scheduled by shipment and the shipment is executed, now it is time to maintain and close the shipment document in order to record all relative information and ready for the shipment cost settlement.
So, save the shipment document and PGI for the delivery would be done automatically.

  • A shipment represents a physical goods movement between two or more locations.
  • For the system to create a shipment, shipping-relevant deliveries must exist.
  • You use Transportation Planning to group pending deliveries into shipments and then to perform the shipments.
  • The outbound delivery documents contain routes that the system calculates in route determination, and a transportation planning date for the delivery.

Dynamic transportation planning is responsible for grouping together outbound deliveries into shipments that have at least the same route, visit plan type and the same transportation planning date.
The following restrictions can be taken into account for a shipment in Dynamic Transportation Planning:

  • Weight
  • Volume
  • Variable capacity
  • Number of stops
  • Maximum duration
  • Loading units

Step 3. Creating Shipment Cost Document & Cost Settlement

Examples

TCode: VI01 (SAP Easy Access - Logistics - Logistic Execution - Transportation - Shipment cost - Create - Single document
After creation of shipment cost doc. The document is ready settling the Shipment cost.

Step 3.1. Use TCode VI02, enter shipment cost no. and press enter.
Step 3.2. Then go to Overview screen Freight cost items, Select the line item and double click it.
Step 3.3. Go as main menu: Item - Acc. assignment, you enter G/L acc. and cost center to which the transportation cost will be posted.
On the Standard change, details - Freight cost items screen, then check the check box 'Transfer', which means you will transfer the relative transportation cost to FI/CO, in this case, the system should determined which Purchase Order will used to settle the cost, so after you check the 'Transfer' check box.
Press save button on the current screen.

Sap Transport Management System Configuration Examples

Effects of Shipment cost settlement and related documents

After the shipment cost settled in shipment cost document, it has the following affects:

  • It creates a service entry sheet that refers to the purchase order determined.
  • It posts acceptance of services performed.
  • It creates an accounting document for the accruals.
  • Further subsequent documents are created in FI.

Generally process is
1) VL01N
2) VT01
3) VL02N - PGI
4) VI01
5) ML81N - Service Entry Sheet
6) MIRO - Invoice Verification


Diagrammatic Representation of SD Transportation Process Flow

Shipping docs (VT01) are created before PGI

You cannot carry out transportation planning or creation of shipment after the goods issue has been executed. Once goods issue is done it means that the material has left your premises so there is no need for a transportation planning after it.

In case you need carry out the shipment documents at the end of the day you could just create the delivery documents during the day and at end of the day create the shipment documents and the goods issue

In this topic, we described about the below sections -

  • Configure TMS
    • Transport Layer

Transport Management is the most important component in SAP system. STMS supports CTO for central management of all transport functions. TMS is used to perform the below activities:

  • Defining Transport Domain Controller
  • Configuring the SAP system Landscape
  • Defining the Transport Routes
  • Distributing the configuration

Transport Domain Controller -

Sap Transportation Management Module

The system which contains complete TMS configuration settings information. The configuration settings are distributed to all the systems and any changes to the configuration settings are also distributed.

Transport group is one or more systems which have and shares a common transport directory. Transport Domain includes all the systems and the routes in the landscape.

Transport domain controller controls the system landscape to manage the transports. If no Transport Domain existed in the system it prompts to create the new one. During the Transport Domain is creation, below activities occur in the background:

  • Transport Domain / Landscape / Group initiation
  • User TMSADM creation
  • RFC Destinations generation required, TMSADM is used as the target login user
  • DOMAIN.CFG file creation in usr/sap/trans/bin directory which contains the TMS configuration and used by systems and domains for checking existing configurations

Transport Routes -

Different routes created by system administrators to transmit changes between the systems in a system group/landscape are called as transport routes.

There are two types of transport routes:

  • Consolidation (From DEV to QAS)
  • Delivery (From QAS to PRD)

Transport Layer –

Used to group the changes of similar kinds. Transport layers are assigned to all objects coming from DEV system. The layers are required for consolidation transport routes. But not required to delivery transport routes.


TMS Configuration -

Step-1: Setting up the Domain Controller. Log on to the SAP system which is decided to be the Domain Controller in client 000.

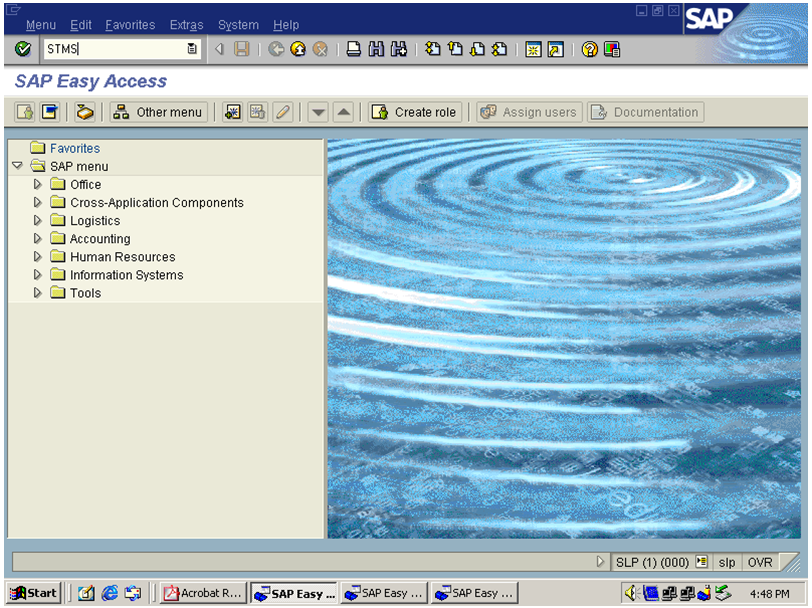

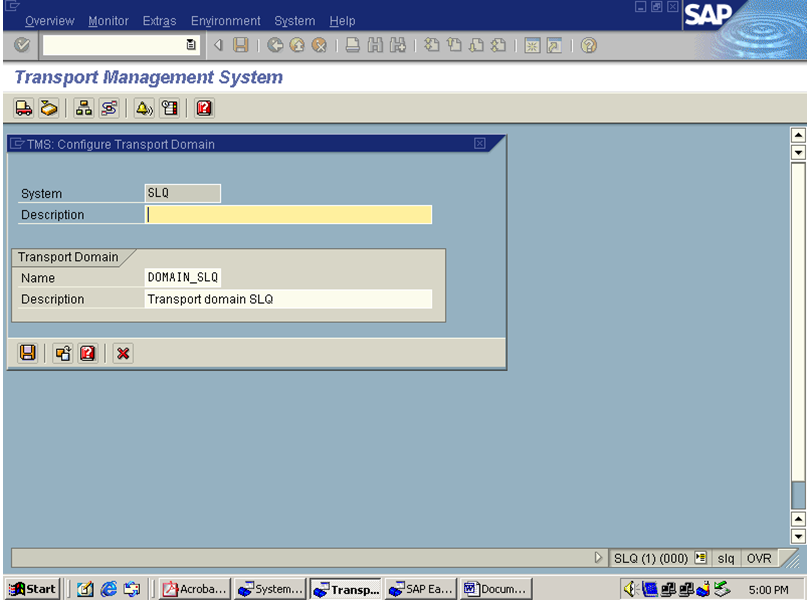

Step-2: Go to the transaction STMS.

Step-3: Adding SAP systems to the Transport Domain

Step-3-1: Log on to SAP systems (to be added in the domain) in client 000.

Step-3-2: Start transaction STMS.

Step-3-3: TMS will verify the configuration file DOMAIN.CFG and propose to join the domain automatically. Select the proposal and save your entries.

Step-3-4: To be included systems status, still in 'waiting' due to security reasons.

Step-3-5: To approve those systems, login to Domain Controller System (Client 000).

Step-3-6: Go to STMS.

Step-3-7: Click on Overview -> Systems.

Step-3-8: Newly added systems appear in the systems overview. From the menu choose 'SAP System' -> Approve.

Step-3-9: The newly added systems approved now.

Sap Transport Management System Configurations

Step-4: Configure Transport Routes and Layers - We will discuss these topics in the further chapters.
